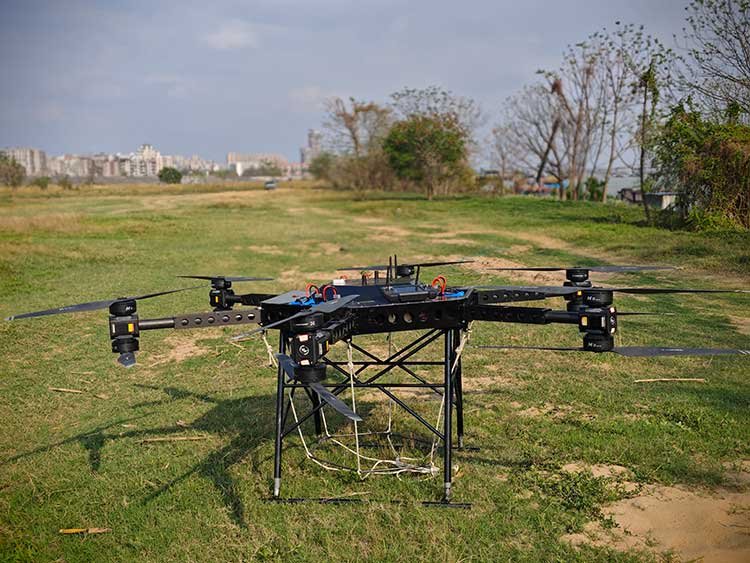

Heavy Duty Drone
The protection level of heavy-duty UAV is IP56, can fly in moderate rain. The fuselage is made of carbon fiber, which is lightweight, strong, and corrosion-resistant. APP ground station and remote control control, with multiple interfaces to simultaneously mount multiple task payloads

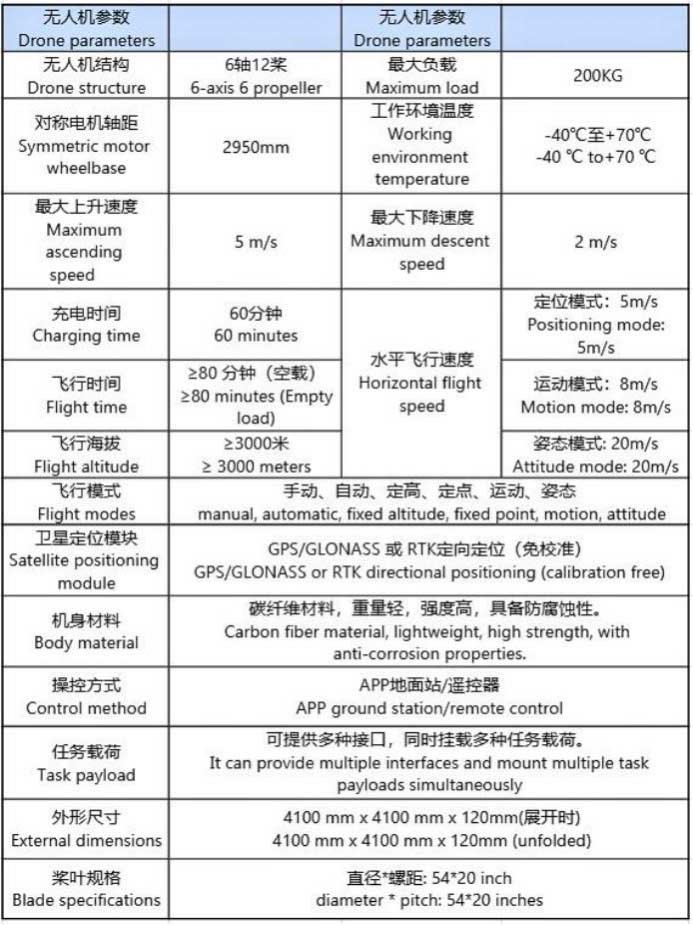

Product Parameters
| Drone parameters | Drone parameters | ||
|---|---|---|---|
| Drone structure | 6-axis 12 propellers | Maximum load | 200kg |
| Symmetric motor wheelbase | 2950mm | Working environment temperature | -40°C-+70°C-40°C to+70°C |
| Maximum speed of ascent | 5m/s | Maximum descent speed | 2m/s |
| Charging time | 50 minutes | Horizontal flight speed | Positioning mode: 5m/s |
| Flight time | >30minutes (Empty load) | Motion mode: 8m/s | |
| Flight altitude | > 3000 meters | Attitude mode: 20m/s | |
| Flight modes | manual, automatic. fixed altitude. fixed point. motion, attitude | ||
| Satellite positioning module | GPS/GLONASS or RTK directional positioning (calibration free) | ||
| Body material | Carbon fiber material, lightweight, high strength, withanti-corrosion properties. | ||
| Control method | APP ground station/remote control | ||
| Task payload | It can provide multiple interfaces and mount multiple taskpayloads simultaneously | ||
| External dimensions | 5000*5000*1400mm(unfolded) | ||
| Blade specifications | diameter * pitch: 54*20 inches | ||
